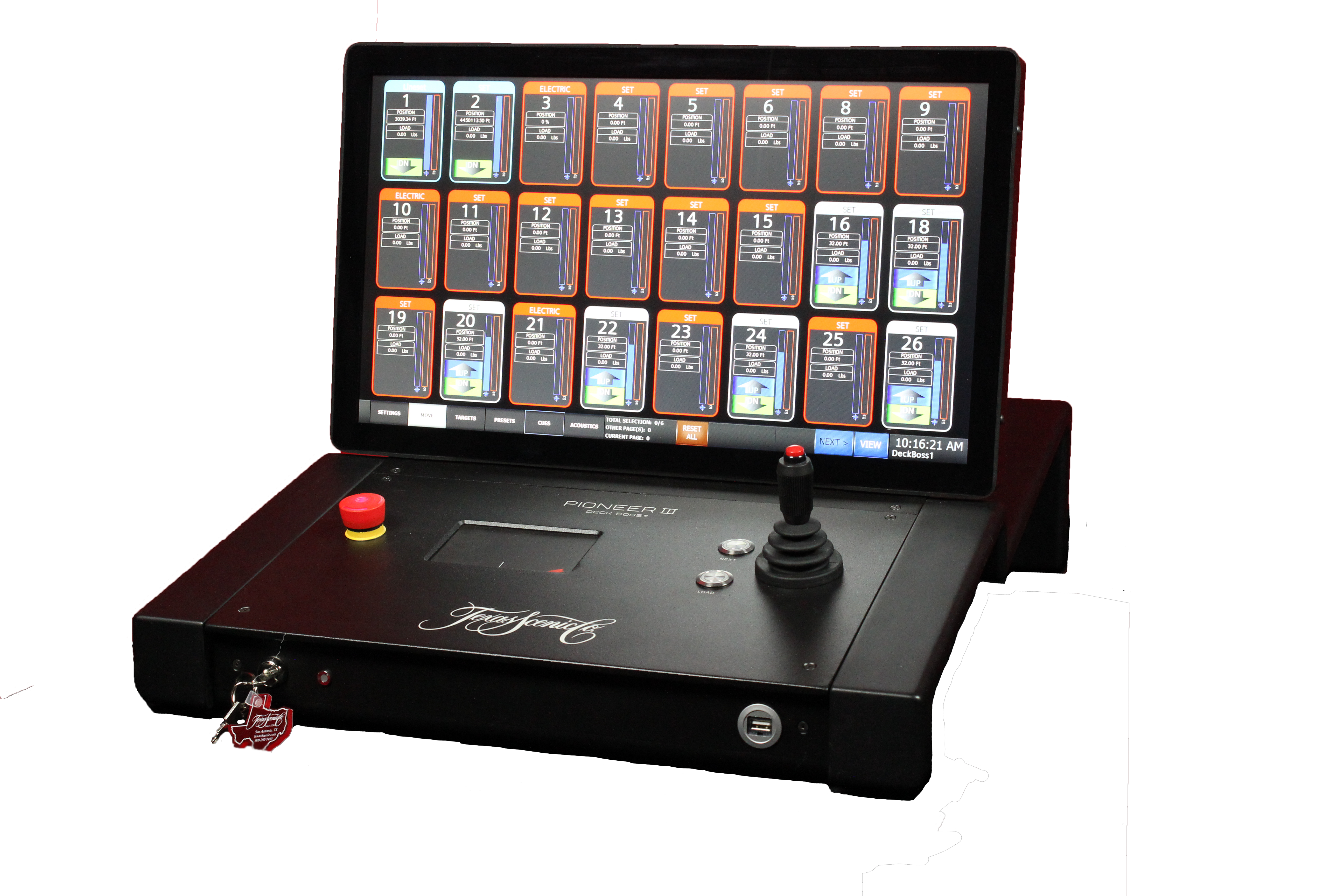

PIONEER III
TOUCHSCREEN CONSOLE
FEATURES
- Easy Touchscreen User Interface
- 8 Access Levels (6 End-User Accessible)
- Usernames and PIN Codes for easy login
- Status, Position, and Load Readout
- Create and Build Presets, Cue Lists, and Shows
- Custom Speed-Based Cues & Ramp Times
- Illuminated Next & Load Buttons
- Manual, Targeted, and Preset Position Control
- Customizable Naming
- Jogging at Variable Speed (system dependent)
- Run Multiple Line Sets Simultaneously at Different Timings
- 20 Variable Acoutic “Looks” Available
- Hold to Run Operation
- Joystick for Precise Movement and Rate Control
- Live Rate Override During Programmed Moves
- Manual control backup system
SYSTEM
-
22” Color Touchscreen LCD Screen
-
Solid State Hard Drive
-
2 USB Ports (1 Front, 1 Rear)
-
Ethernet Port
-
Trackpad Input
-
All Cables on Connectors
-
2 Commissioning Soft Limits Per Axis
-
10 Trim Positions Per Axis
-
999 Max Presets
-
1000+ Max Cue Numbers
-
Rugged Formed Steel & Aluminum Enclosure
-
Scratch Resistance Surfaces
-
Dust/Splash Proof Tilt-Adjustable Display
-
24V DC Integration With Motor Control System
OPTIONAL FEATURES
-
Integration With Third Party Motor Systems
-
Integration With AV Control Systems For Preset Recall
-
Deck Boss® Scout Touchscreen Remote Control
-
External E-Stop Stations
-
Remote Cue Enable/Go Pendant
-
Slack Line Monitoring
-
Load Sensing
