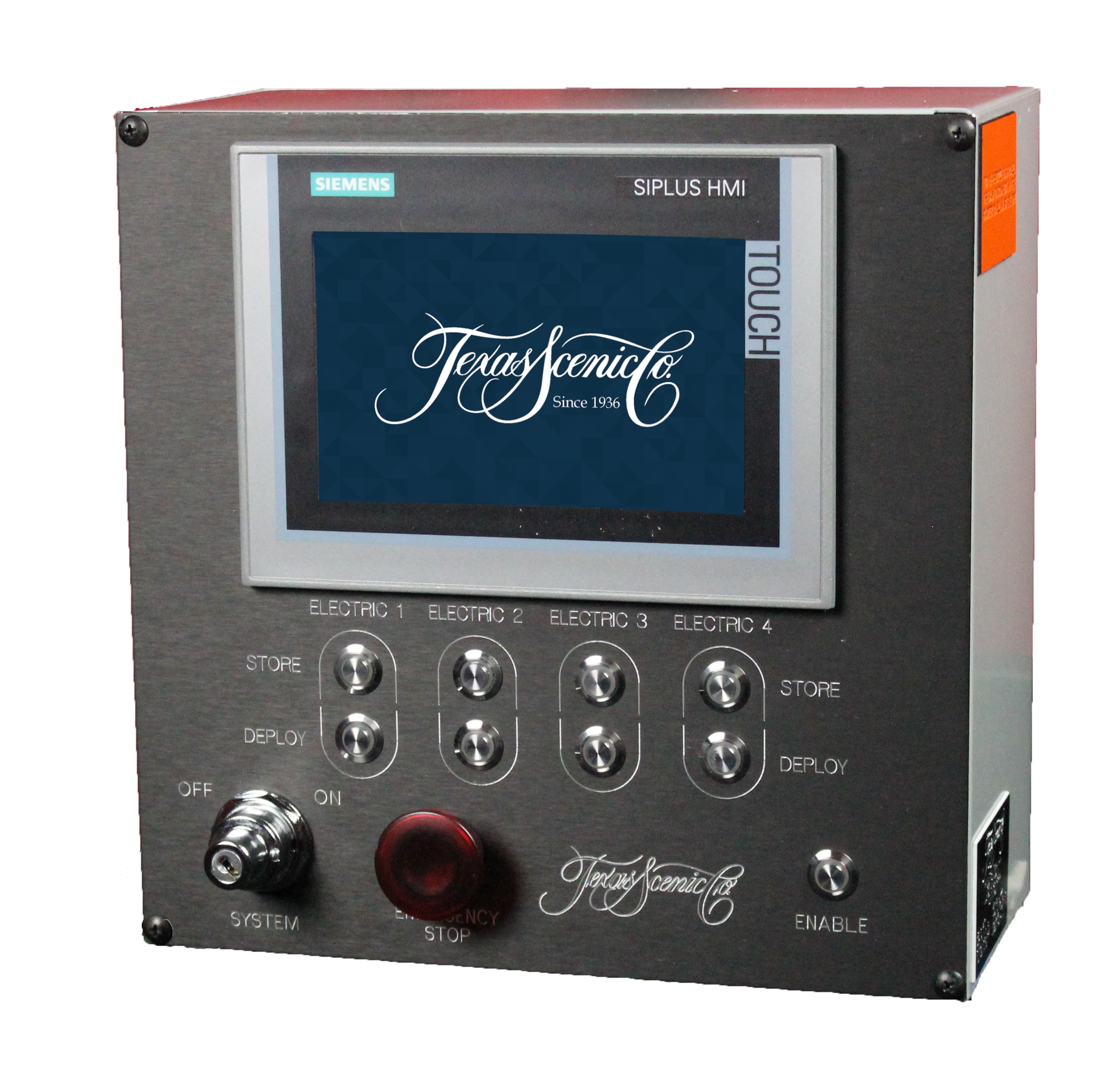

PIONEER I
TOUCHSCREEN PRESET STATION
FEATURES
-
Easy Touchscreen User Interface
-
Status, Position, and Load Readout
-
Computer Programmable Presets
-
Customizable Layout
-
Key Switch Programming
-
Hold to Run Operation
-
Manual Control Backup System
STATION SIZING
- Up To 6 Motors – 12″ x 12″ x 6″
- Up To 12 Motors – 16″ x 12″ x 6″
SYSTEM
-
7” Color Touchscreen LCD Screen
-
Solid State Memory
-
User Access Levels (Basic/Advanced/Admin)
-
All Cables On Connectors
-
Maximum Of 12 Store/Deploy Push Button Sets With Control Of Up To 24 Motors
-
Rugged Formed Steel & Aluminum Enclosure
-
Scratch Resistance Surfaces
-
Dust/Splash Proof Display
-
24V DC integrated into Motor Control Cabinet
OPTIONAL FEATURES
-
Custom Button Configuration – Up To 12 Button Sets
-
Integration with Third Party Motors
-
Integration with AV Systems For Preset Recall
-
Integration with Variable Acoustic Systems
-
Deck Boss® Scout Touchscreen Remote Control
-
Remote Cue Enable/Go Pendant
-
External E-Stop Stations
-
Slack Line Monitoring
-
Load Sensing
