MOTORIZED ROLLING VARIABLE ACOUSTIC BANNER

Our acouRoll Banner Systems includes Banner Machines, Motor Starters/MCPs, and Controller.

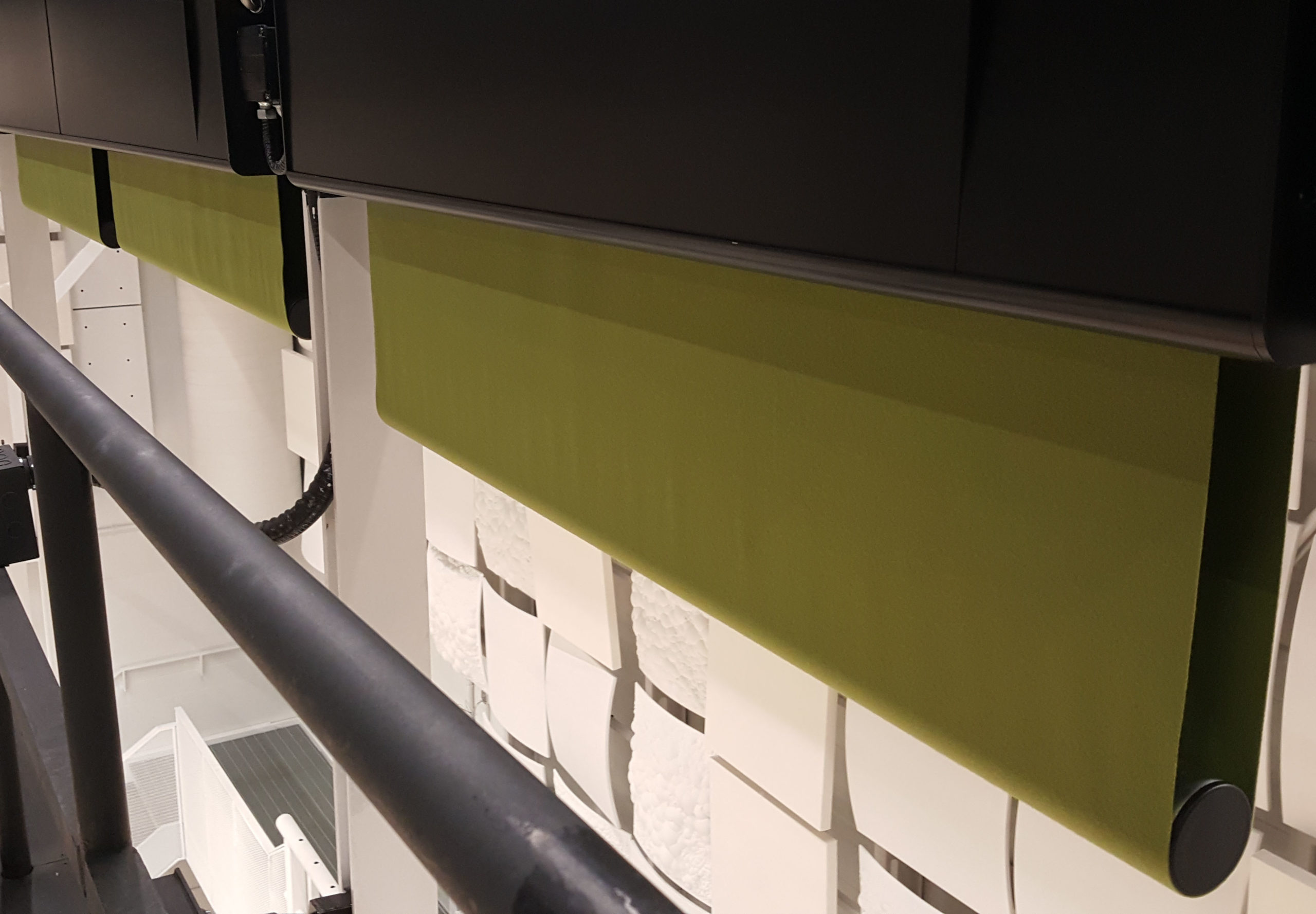

Roll banners are designed with 2 layers of fabric and a 3” bottom tube weight to maintain fabric panel spacing and introduce tension to the fabric surface for optimum acoustic control. Roll banners deploy to full or preset lengths, and retract and store neatly in machine frame. The sleek and compact design options for pricing flexibility.

All our banners are built with acouStaCorp 100% Wool (DFR, 550gsm) for a high density weave without nap or synthetic sheen. Wool is recommended by acousticians as an effective sound absorber across a wide range of frequencies. Click here for to find out more.

Our banners are independent lab certified for absorption coefficients under ASTM-C423- test reports available upon request.

The 2016 life cycle test benchmark was made at 15,000 continuous cycles, representing a service life of 20 years with twice daily operation. Testing was concluded at 38,000 continuous cycles without failure.

Our heavy-duty aluminum machine frame has removable polyvinyl infill panels and a standard mill finish aluminum- custom enclosures and closure panels available.

 The integral mounting system is built into the frame, making it easy for ceiling or wall installation- other custom mounting options are also available.

 For the RW12 and RW20 series, the motors are equipped with 1-Phase, 120VAC Internal tube motor with standard travel speeds between 27 fpm – 30 fpm.

 For the RW30 series, the motors are equipped with a 3-Phase, 208VAC, 60 Hz external gear motor with a minimum service factor of 1.25 with standard travel speed is nominal 34 fpm.

All machines are designed with bottom access to the motor and limit switch for adjustments and routine maintenance. Optional front access available.

acouRoll Product Options

RW12 – seamless fabric panel up to 58” wide x up to 12’ tall
RW12-MB2 – single machine frame with two (2) seamless fabric panels

RW20 – seamless fabric panel up to 58” wide x up to 20’ tall
RW20-MB2 – single machine frame with two (2) seamless fabric panels

RW30 – seamless fabric panel up to 58” wide x up to 30’ tall
RW30-MB2 –  single machine frame with two (2) seamless fabric panels

Wide width option – up to 15’ wide fabric panel up to 20′ tall (RW12 & RW20) or 30′ tall (RW30) with horizontal seams spaced approximately 60” apart

Click here for color options (custom colors available at no additional charge).

acouRoll  Control Options

All banners are compatible with the acouStaCorp Symphony Automation Controller or any Deck Boss® control options from Texas Scenic, as well as can be integrated into third party controllers- Click here for controls options, or contact us about third party integration.

Warranty

Warranted to be free from defects of material and workmanship for three (3) years. All variable acoustic banners are manufactured in Bronx, NY, and shipped fully assembled and tested.

For technical, design and custom product support click here to request a Design & Site Coordination Guide.
